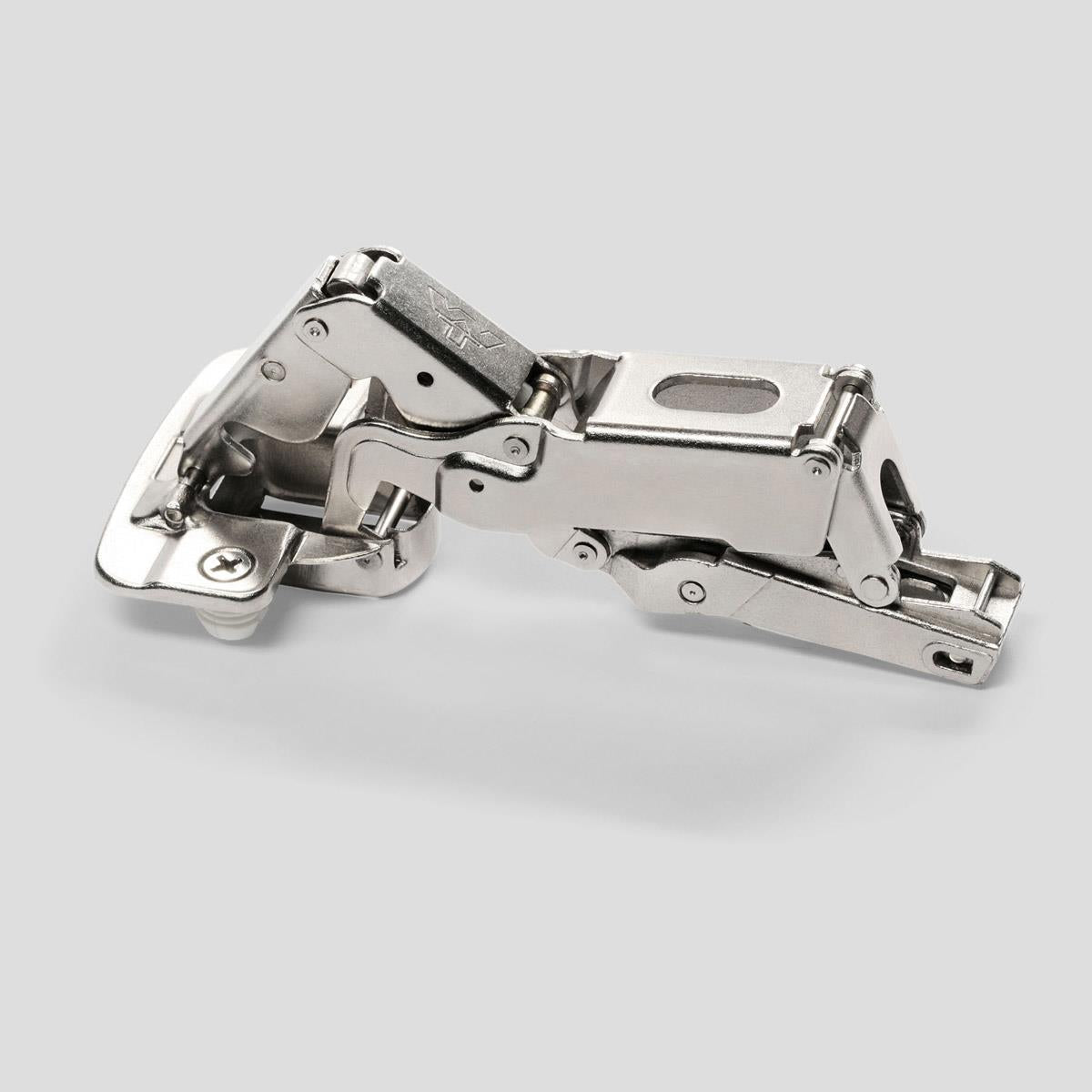

110 Economy Hinge | 165° Opening, Full Overlay

A wide-angle concealed hinge engineered for full overlay cabinetry where maximum door clearance is the priority.

Constructed from steel with a nickel-plated finish, the 110 Economy Hinge delivers reliable performance in high-use environments. The 165° opening angle provides unobstructed access to cabinet interiors — particularly useful for corner units and cabinets housing internal drawers. Knock-in installation with pre-attached dowels (S48 pattern) simplifies fitting without compromising holding strength.

Product Details

• Material: Steel with nickel-plated finish
• Opening angle: 165°
• Overlay type: Full overlay
• Cup diameter: 35mm | Cup depth: 11.5mm
• Door thickness compatibility: 16mm – 24mm
• Installation: Knock-in with pre-attached dowels, S48 boring pattern

Best For

Suited to kitchen, bathroom, and office cabinetry where a full overlay door must open beyond the standard 110° range. Particularly effective in corner cabinet configurations and any unit where internal fittings require unobstructed door travel. A practical, cost-efficient choice for volume cabinetry projects without sacrificing function.
