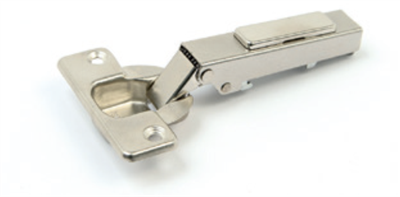

143 Concealed Hinge — 110°

A precision-engineered concealed hinge built for consistent door alignment across full overlay, half overlay, and full inset cabinet configurations.

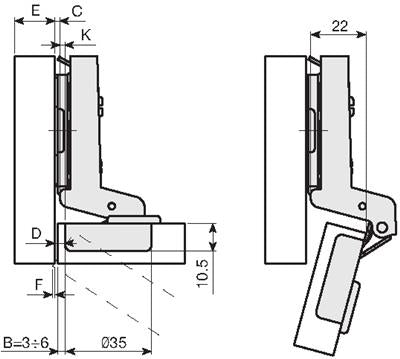

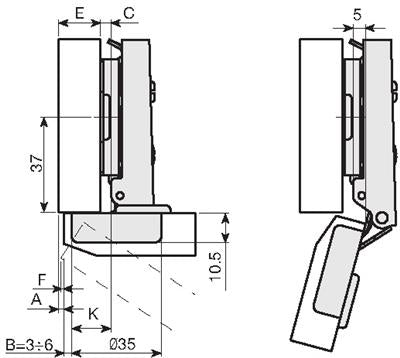

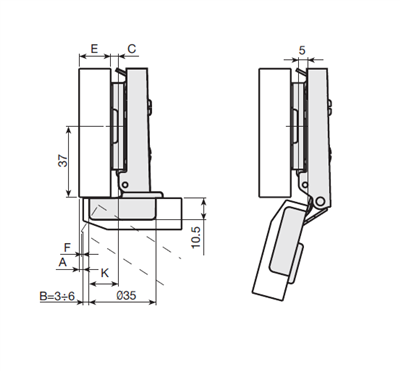

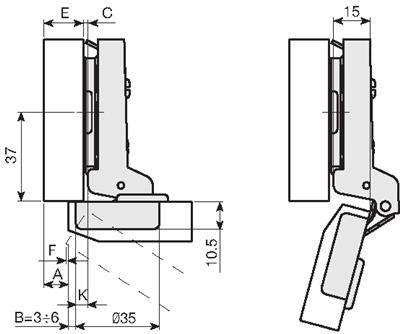

Manufactured to professional cabinetry standards, the 143 series features a 35mm cup diameter and 11.5mm cup depth, accommodating door thicknesses from 14–22mm. The range spans standard, unsprung, and reverse-sprung variants, with fixing options including knock-in, screw-fix, and pre-fitted dowels — giving installers flexibility without compromising on repeatability. The 110° opening angle suits the majority of kitchen and furniture applications where full door clearance is required.

Product Details

• Opening angle: 110°
• Hinge cup diameter: 35mm
• Hinge cup depth: 11.5mm
• Door thickness range: 14–22mm
• Cup drilling position: 3–6mm (B)
• Fixing options: 45mm knock-in, 52mm with dowels, 52mm screw-on / screw-fix
• Spring types: Standard, Unsprung, Reverse Sprung
• Crank options: 0mm, 10mm, 17mm
• Weight: 70g per hinge
• Standard box quantity: 125 units

Best For

Suited to kitchen cabinet doors, wardrobe carcasses, and furniture panels where a clean, concealed fixing is required. The range of crank and fixing combinations makes it a practical choice for cabinet makers managing mixed overlay specifications across a single project. Reverse-sprung variants are appropriate for doors requiring assisted closing without a separate damper.
