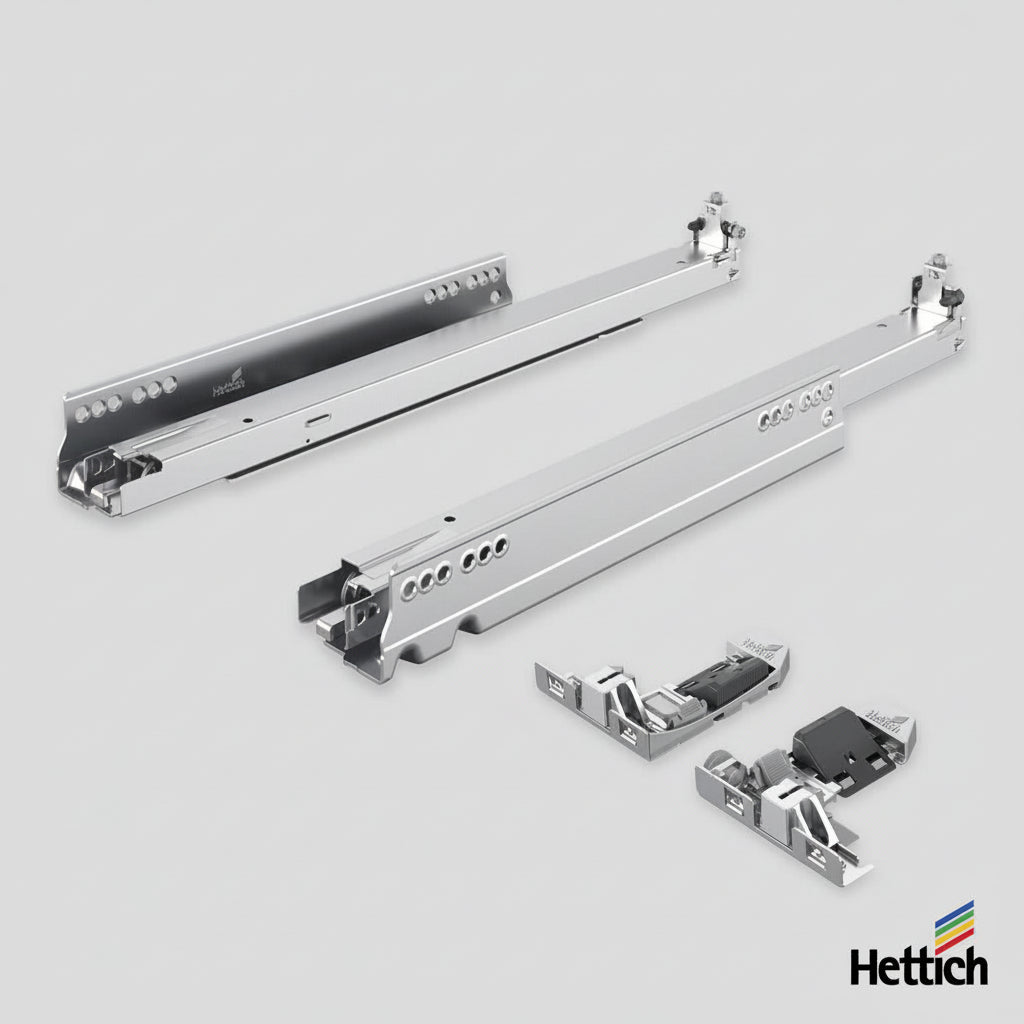

Actro 5D Silent Runner Set | 250–750mm

A full-extension undermount runner system with five-axis adjustment and integrated soft-close, built for precision-fitted cabinetry installations.

The Actro 5D Silent operates on a recirculating ball-bearing track with a dampened soft-close mechanism that engages consistently across the full load range. Five independent adjustment axes — height, side, tilt, depth, and front gap — allow drawer fronts to be dialled in without removing the drawer box. Available in lengths from 250mm to 750mm with load ratings of 10kg, 40kg, and 70kg, covering shallow spice drawers through to heavy pot drawers. Supplied as a set with integrated catches.

Product Details

• Material: steel runner body with corrosion-resistant surface treatment
• Mechanism: recirculating ball-bearing track for smooth, consistent full-extension travel
• Soft-close: integrated dampener with catch engagement on closing
• Adjustment: 5-way — height, side, tilt, depth, and front gap
• Lengths: 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm, 750mm
• Load ratings: 10kg (250–300mm), 40kg (350–600mm), 70kg (600–750mm)

Best For

Frameless European-style cabinetry where concealed undermount runners are the standard specification — kitchen base cabinets, bathroom vanities, and wardrobe drawer towers where drawer front alignment is critical to the finished result. The 70kg-rated variants handle heavy-duty applications including pot drawers and deep pantry pull-outs. Pairs with Hettich ArciTech and similar steel-sided drawer box systems.
