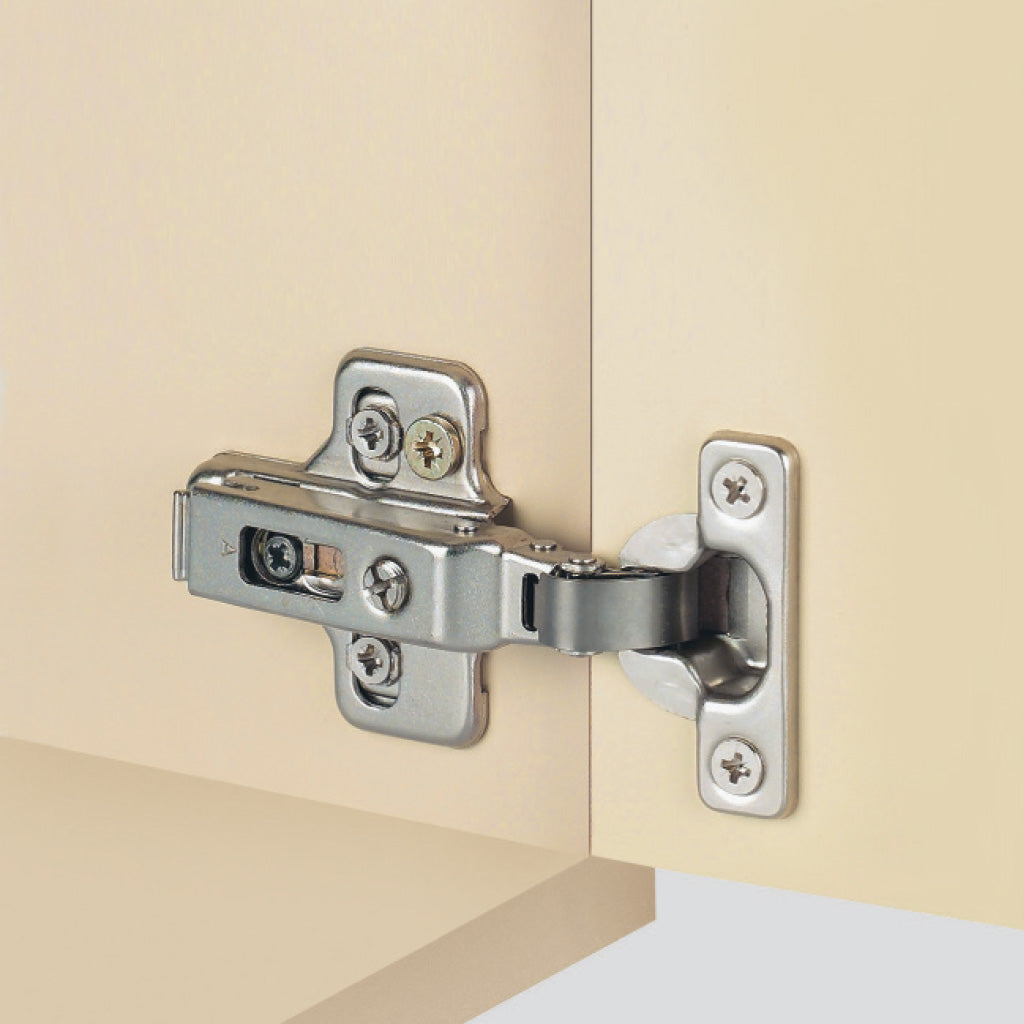

94° Mini Series 400 Hinge — Nickel-Plated

A compact concealed 94° hinge made for narrow frames.

A steel cup with a zinc-alloy hinge arm and a nickel-plated finish. It offers lateral and height adjustment, and fixes to Salice A or SM mounting plates.

Product Details

• Material: Steel cup, zinc-alloy hinge arm
• Finish: Nickel-plated
• Opening angle: 94°
• Application: Narrow frames
• Adjustment: Lateral −1.5 to +5.5 mm, height −2 to +2 mm
• Drilling pattern: 38/7.5

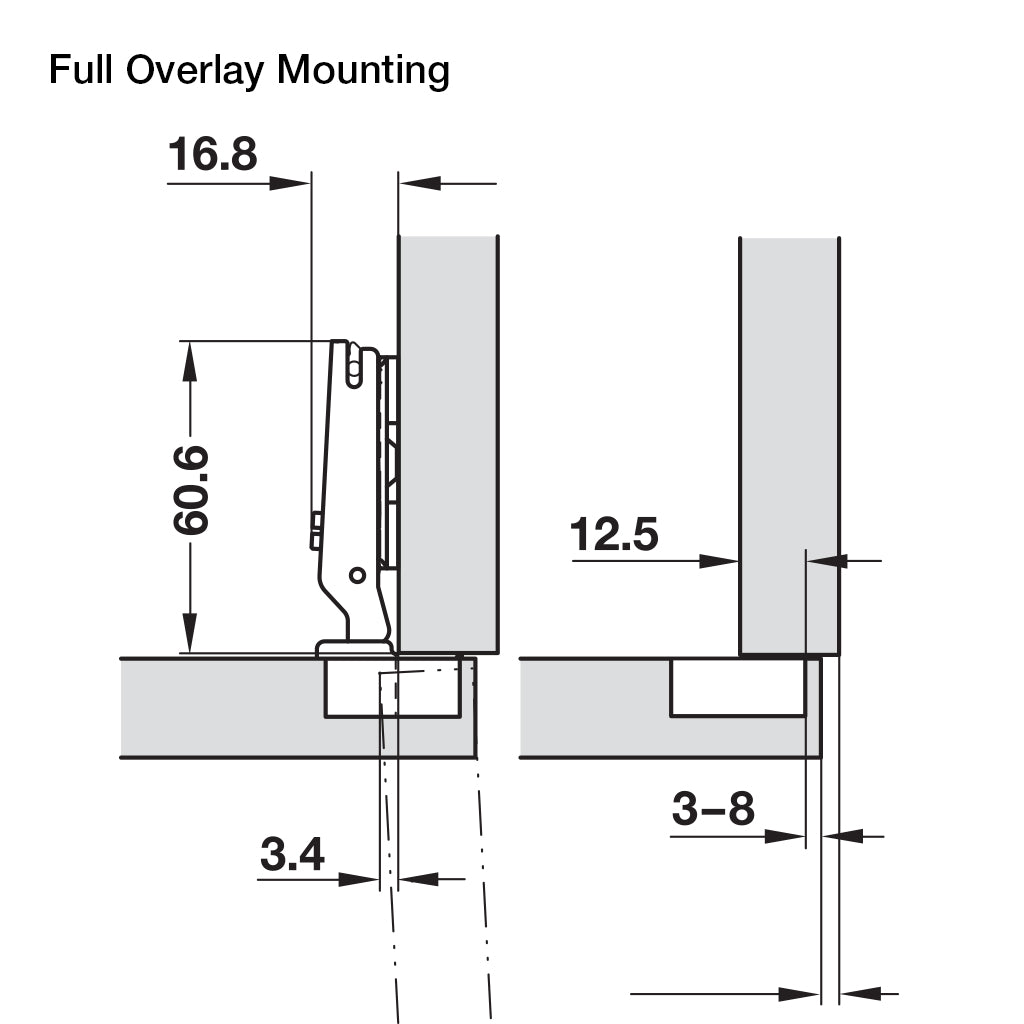

• Mounting: Full overlay, half overlay or inset

Best For

Cabinets with narrow frames or slim stiles where a standard cup will not fit. Order mounting plate 329.68.003 separately.
