Description

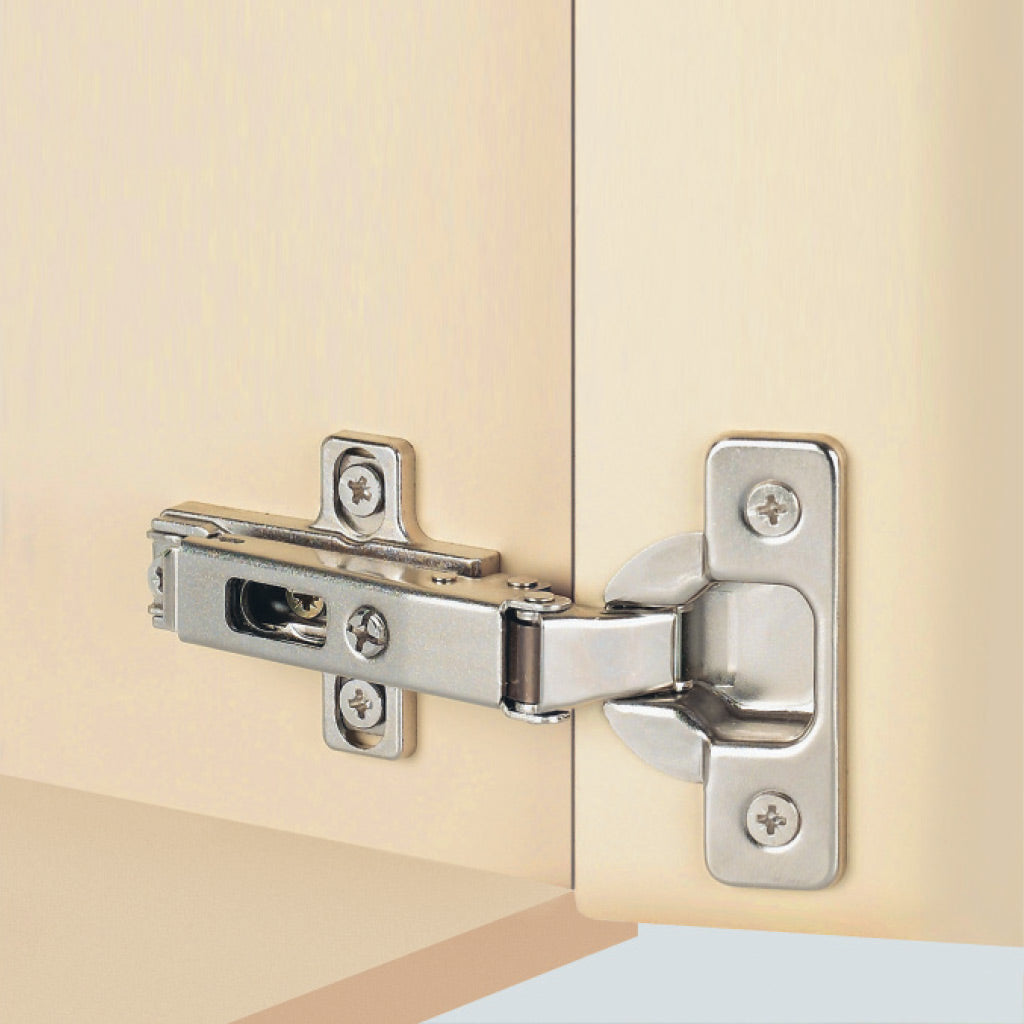

A concealed 110° cabinet hinge for doors up to 26 mm thick.

Steel with a nickel-plated finish. It offers lateral and height adjustment for aligning doors after hanging, and fixes to Salice A or SM mounting plates.

Product Details

  • Material: Steel
  • Finish: Nickel-plated
  • Opening angle: 110°
  • For door thickness: up to 26 mm
  • Adjustment: Lateral −1.5 to +4.5 mm, height −2 to +2 mm
  • Drilling pattern: 48/6

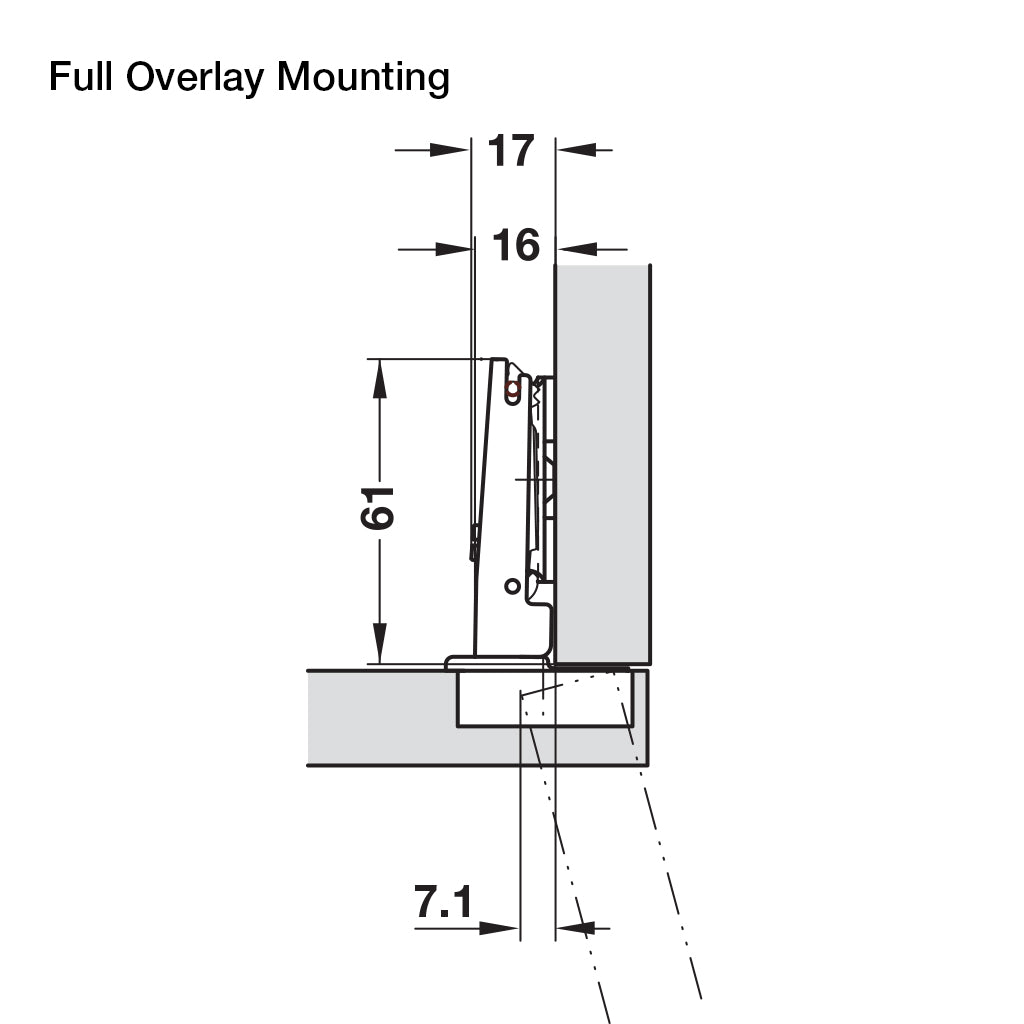

  • Mounting: Full or half overlay

Best For

Cabinet and cupboard doors needing on-site adjustment. Order mounting plate 329.68.003 separately.
