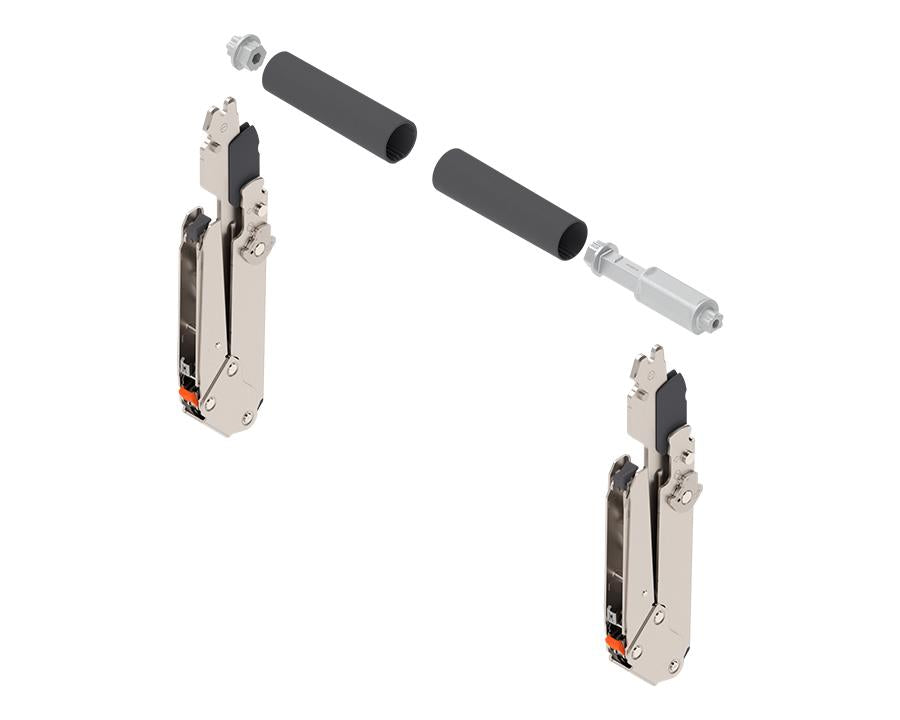

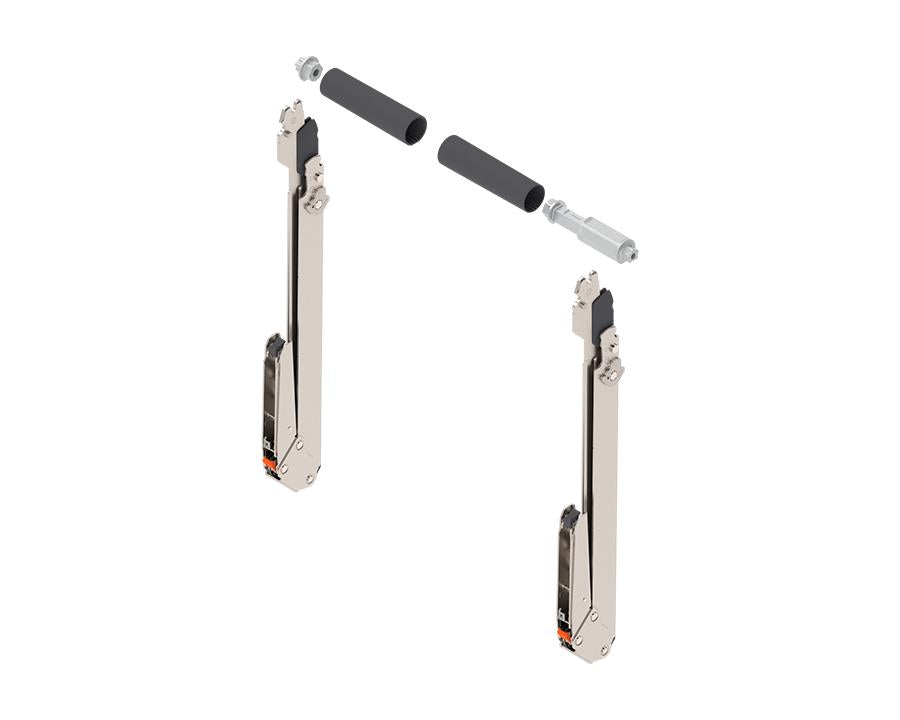

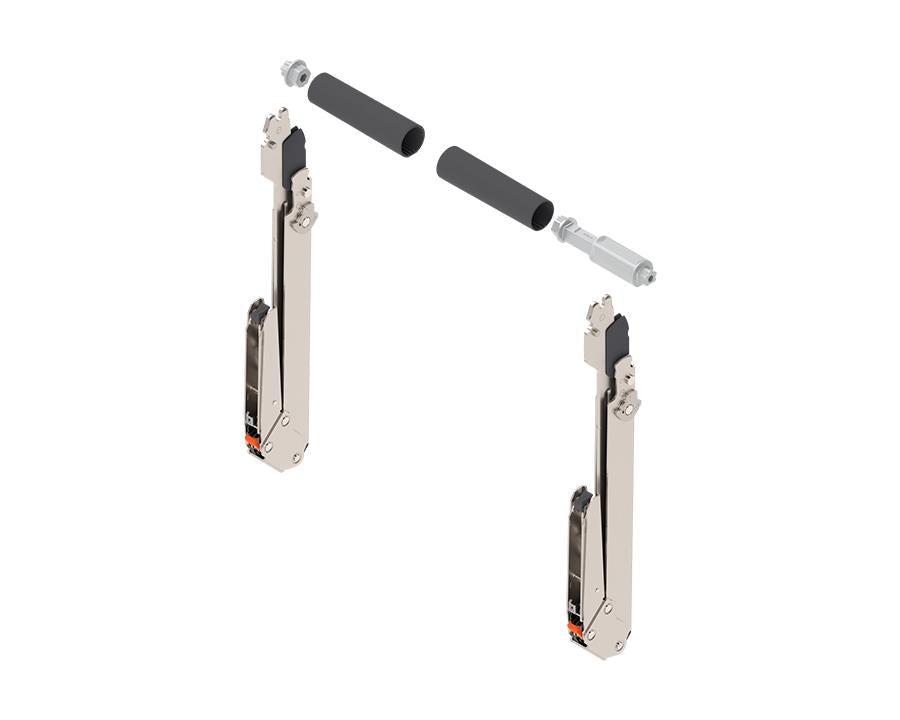

AVENTOS HL by Blum Top Symmetrical Arm Set

A precision-engineered lift-up arm set designed for overhead cabinetry that demands smooth, controlled movement across a wide range of cabinet heights.

Constructed from nickel-plated steel, the AVENTOS HL Top arm set delivers consistent lift force calibrated to the front panel weight, eliminating the need for manual adjustment in most installations. The symmetrical configuration ensures balanced operation across the full cabinet width, and the CLIP fixing system allows for straightforward attachment to both the lift mechanism and the flap. Each set is fully compatible with SERVO-DRIVE for hands-free, motor-assisted opening.

Product Details

• Material: Steel with nickel-plated finish
• Fixing type: CLIP to lift mechanism and flap
• Cabinet height range: 300–580mm (variant-dependent)
• Cabinet width: Up to 1800mm
• Symmetrical: Yes
• Pack contents: 2 levers, 2 cover caps, 1 attachment, 1 lateral divider compensation
• SERVO-DRIVE compatible: Yes

Best For

Suited to overhead cabinets positioned above worktops or in mid-wall installations where a lift-up front is required. The compatibility with SERVO-DRIVE makes it a practical choice for accessible kitchen designs or high-use cabinetry where touch-free operation is a priority. Select the variant that matches your cabinet height for correct force calibration.
