AVENTOS HK-XS by Blum Stay Lift Mechanism | Power Factor 500

A slim, symmetrical lift mechanism engineered for small wall cabinets where space above and behind the door is limited.

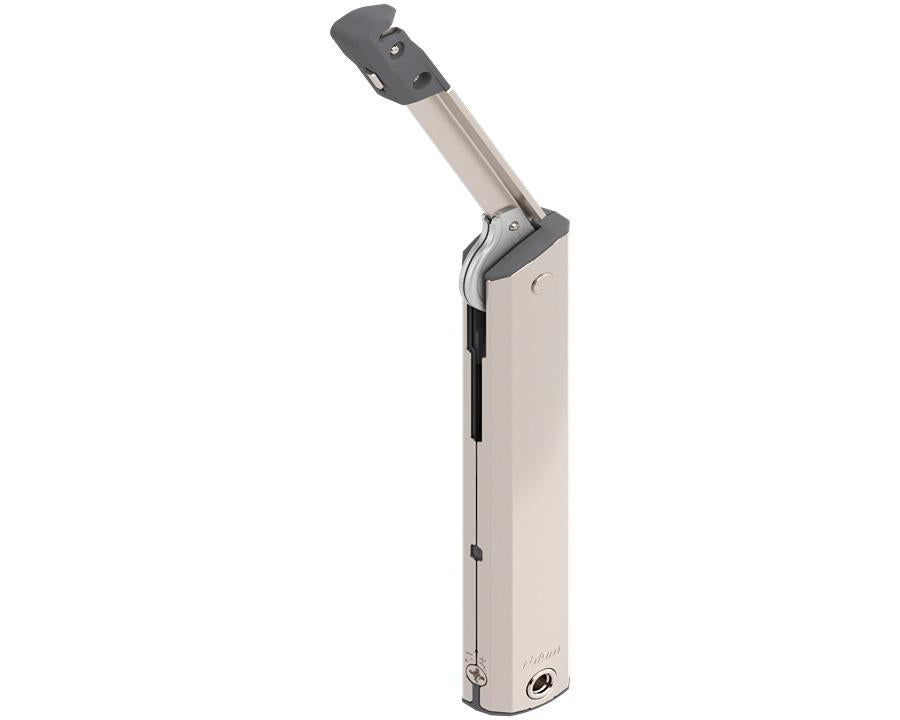

Constructed from nickel-plated steel, the HK-XS delivers a quiet, controlled closing action via Blum's TIP-ON mechanical integration. Its compact profile enables cabinet depths from 100 mm and heights from 240 to 600 mm — opening possibilities that bulkier mechanisms rule out. The 86° opening angle stop keeps the front well clear of overhead obstructions without requiring additional clearance above the cabinet.

Product Details

• Material: Steel, nickel plated
• Power factor range: 500–1500 (single-sided application)
• Suitable cabinet height: 240–600 mm
• Minimum internal cabinet depth: 100 mm
• Opening angle: 86° with integrated stop

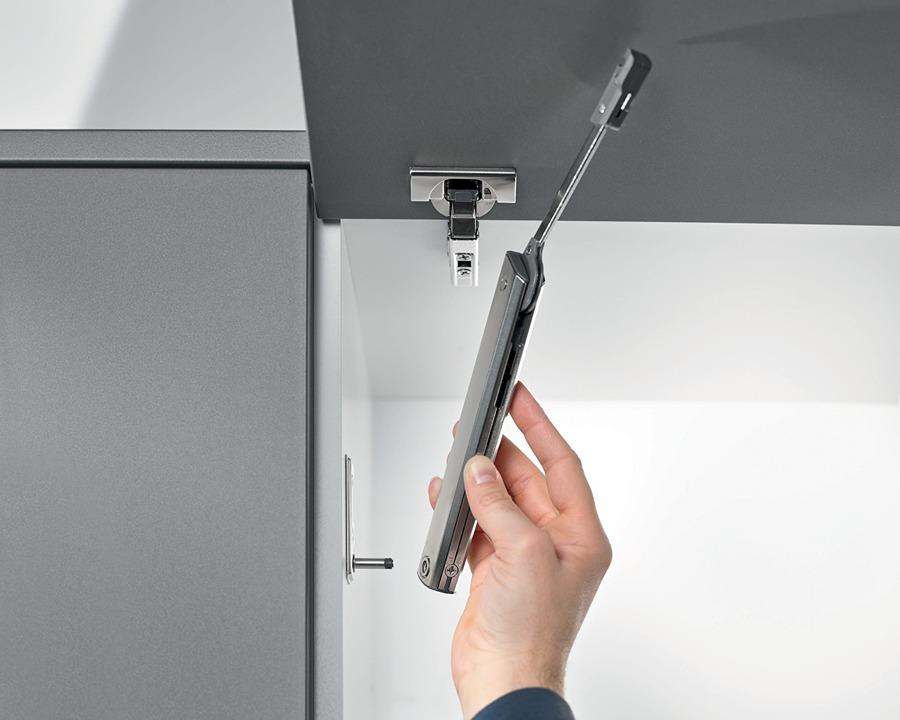

• Mounting: Screw-on, symmetrical lift mechanism
• Compatible with TIP-ON mechanical system
• Package contents: 1 piece (20K1301)

Best For

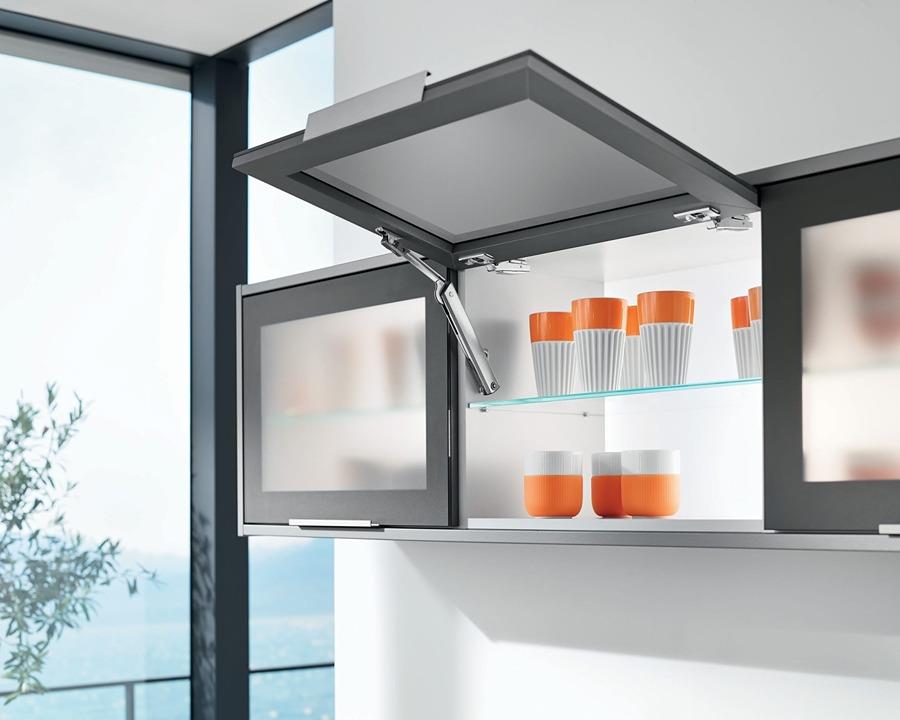

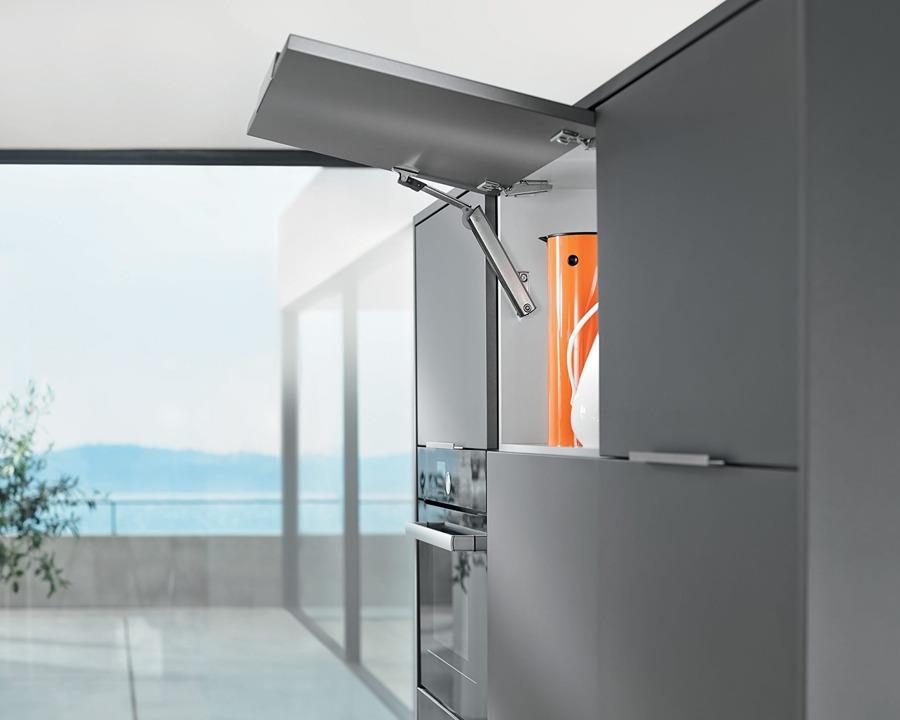

Designed for small, light wall cabinet fronts in kitchens, laundries, and fitted joinery where overhead clearance is restricted. Use a single mechanism for lighter fronts; pair with a second unit on the opposite side for larger or heavier applications. Suits both timber fronts and narrow or wide aluminium-framed doors.
