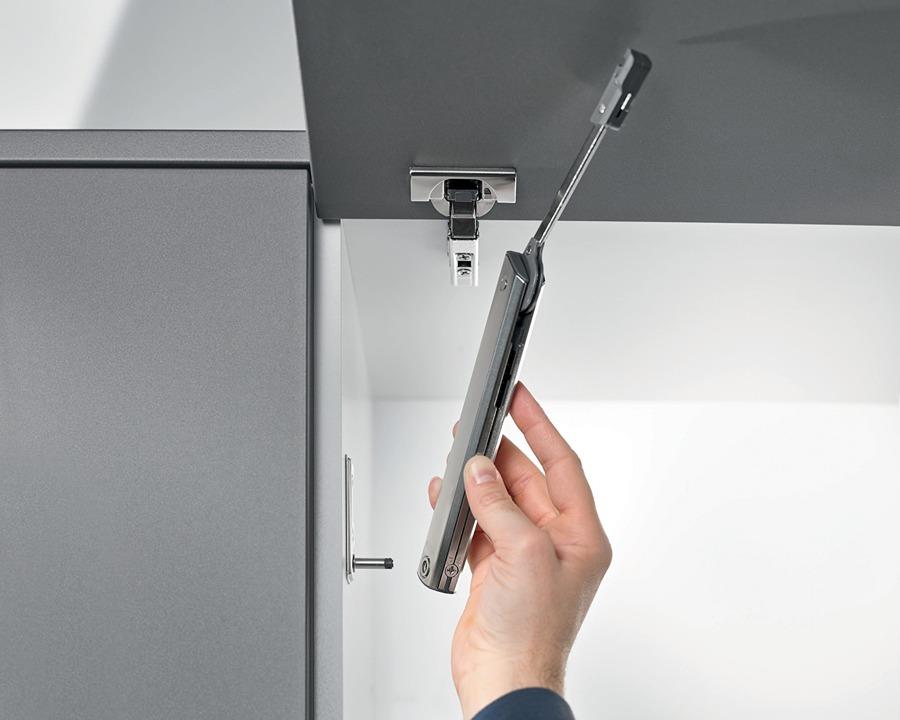

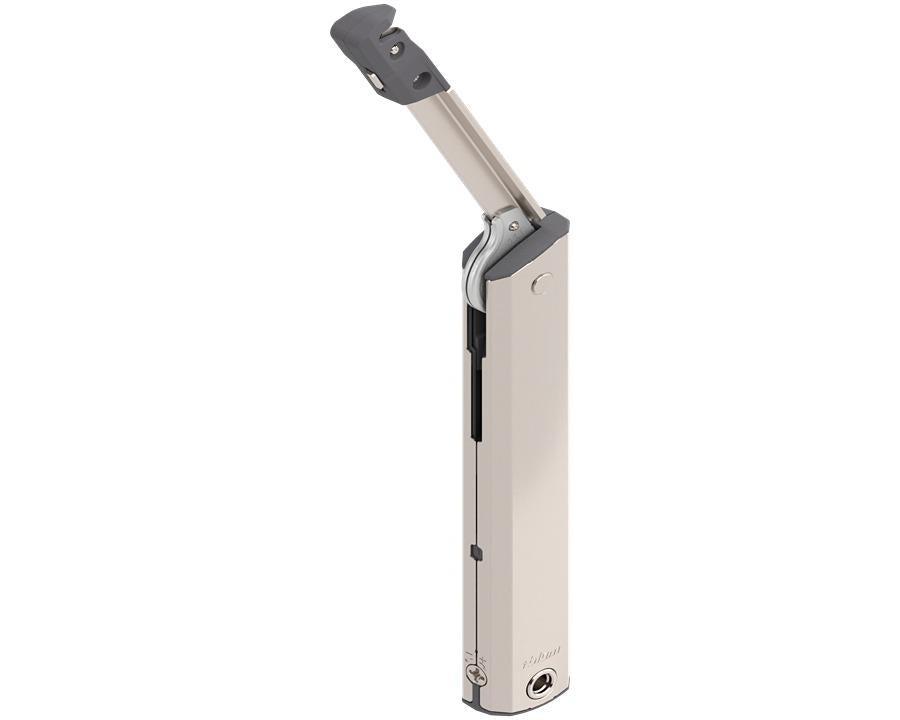

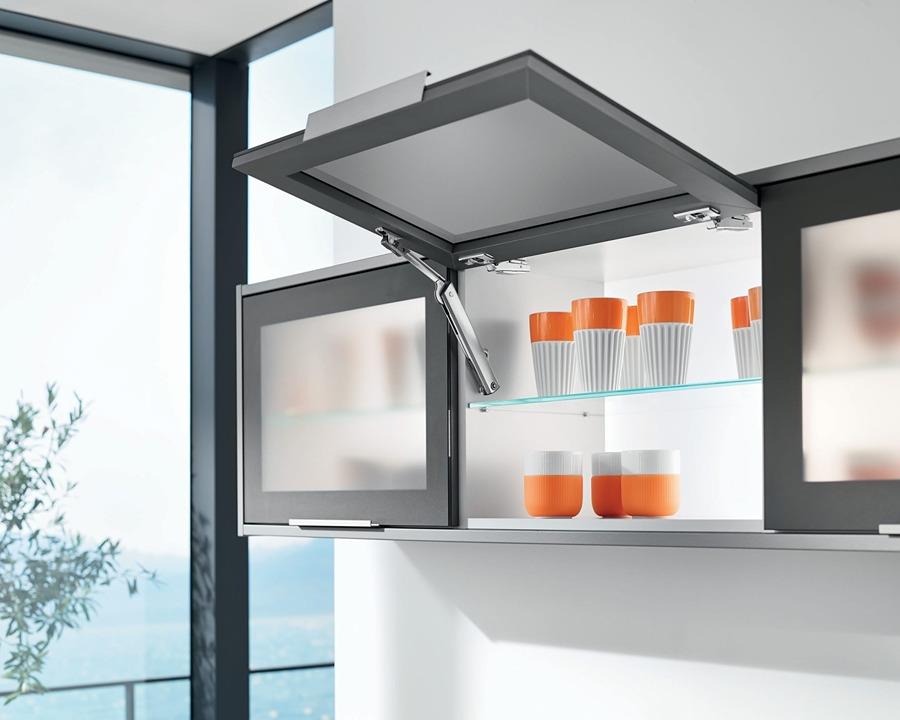

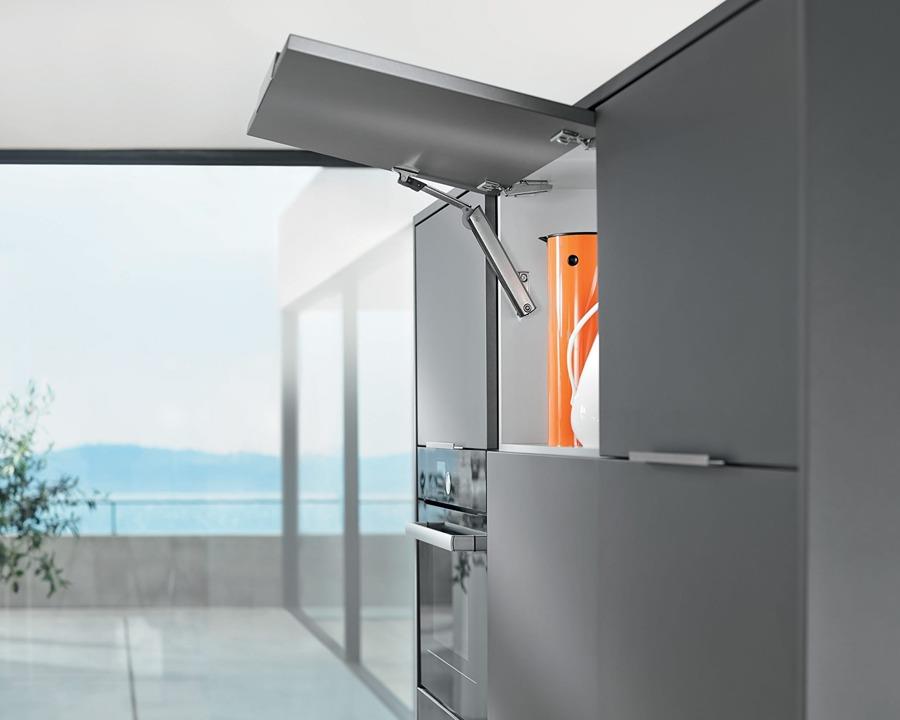

AVENTOS HK-XS by Blum Stay Lift Mechanism | TIP-ON

A slim, symmetrical stay-lift mechanism engineered for small wall cabinets where space above is limited.

Constructed from nickel-plated steel, the AVENTOS HK-XS delivers a precise, controlled lift action with no protruding parts and a clean profile suited to both timber and aluminium-framed fronts. The integrated TIP-ON mechanical system enables silent, effortless closing without handles — ideal where a flush, handleless aesthetic is required. Its symmetrical design allows single-sided use for lighter fronts or dual-sided installation for larger panels.

Product Details

• Material: Steel, nickel-plated finish
• Opening angle: 86° stop — minimal clearance required above cabinet
• Power factor: 180–800 (single lift mechanism)
• Cabinet height range: 240–600mm
• Minimum internal cabinet depth: 100mm
• Mounting: Screw-on fixing to cabinet carcass
• Closing system: TIP-ON mechanical (touch-to-open/close, no handle required)
• Package: 1 piece

Best For

Suited to small wall cabinets and fitted units in kitchens, laundries, and living areas where overhead clearance is restricted. The 86° stop angle makes it practical in low-ceiling or under-soffit installations. A reliable choice for handleless cabinet designs requiring a clean, integrated lift solution.
