Angled Spacer by Blum | Cruciform | 5° | 6mm

A precision-engineered angled spacer that compensates for cabinet face frames or walls set at -5° from true vertical.

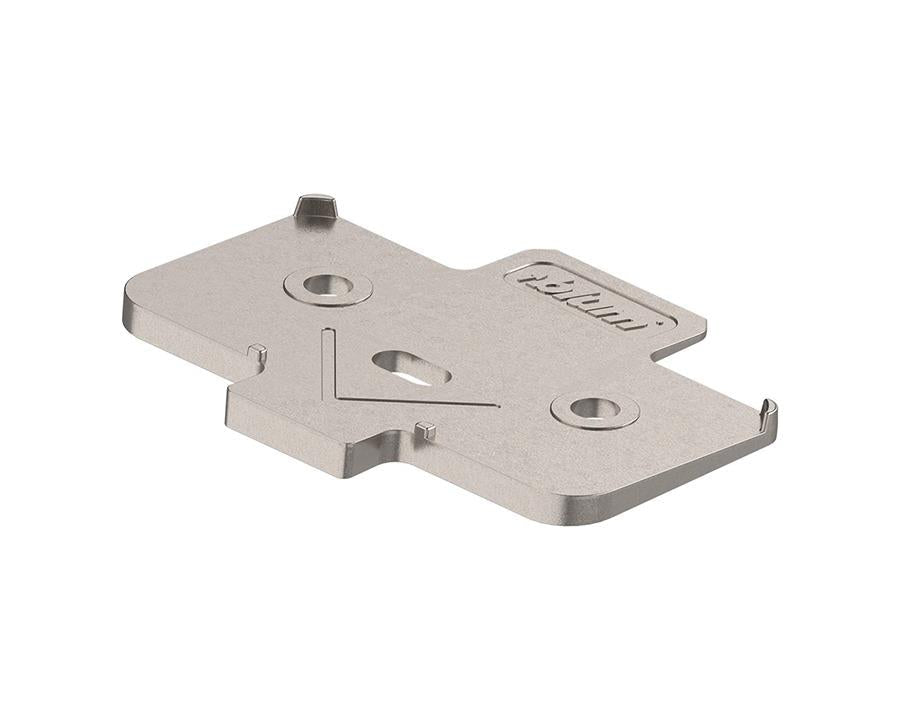

Manufactured from zinc with a nickel-plated finish, this cruciform spacer delivers the dimensional accuracy Blum hinge systems demand. The wedge-shaped, symmetrical profile maintains consistent door alignment across angled applications, and the screw-on fixing method ensures a secure, repeatable mount. Suited to cabinetry where standard hinge geometry falls short — blind corners, angled end panels, and non-plumb installations.

Product Details

• Material: Zinc, moulded component
• Finish: Nickel plated
• Spacer type: Cruciform, wedge-shaped, symmetrical
• Angle: -5° | Tip dimension: 0.92mm

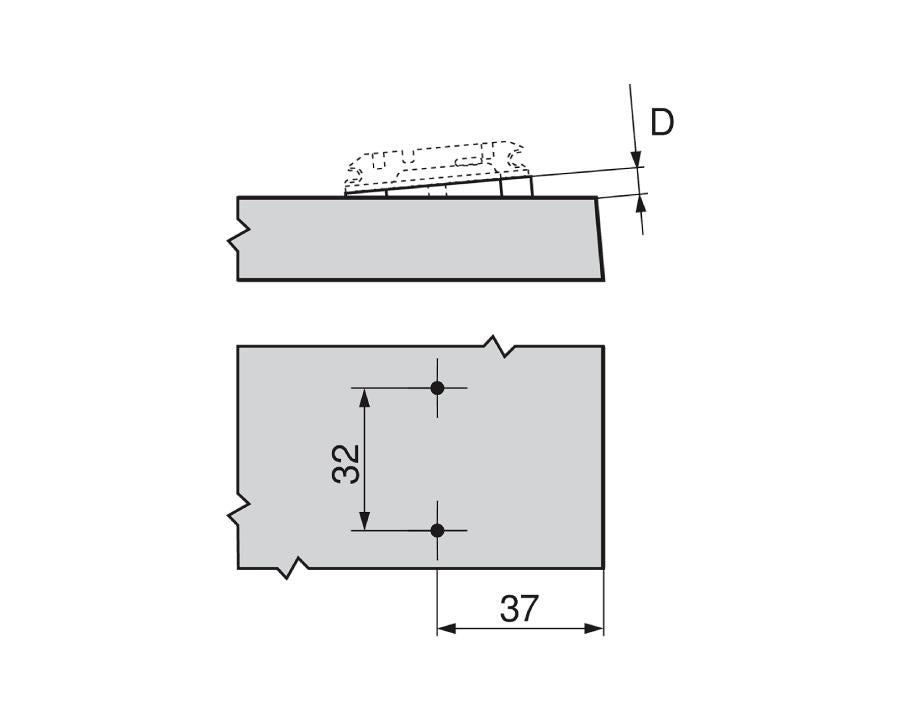

• Dimensions: 41.8mm (L) × 56.6mm (H) | Thickness: 6mm
• Fixing: Screw-on, fixing position 02 | Stackable: Yes | Pack: 1 piece

Best For

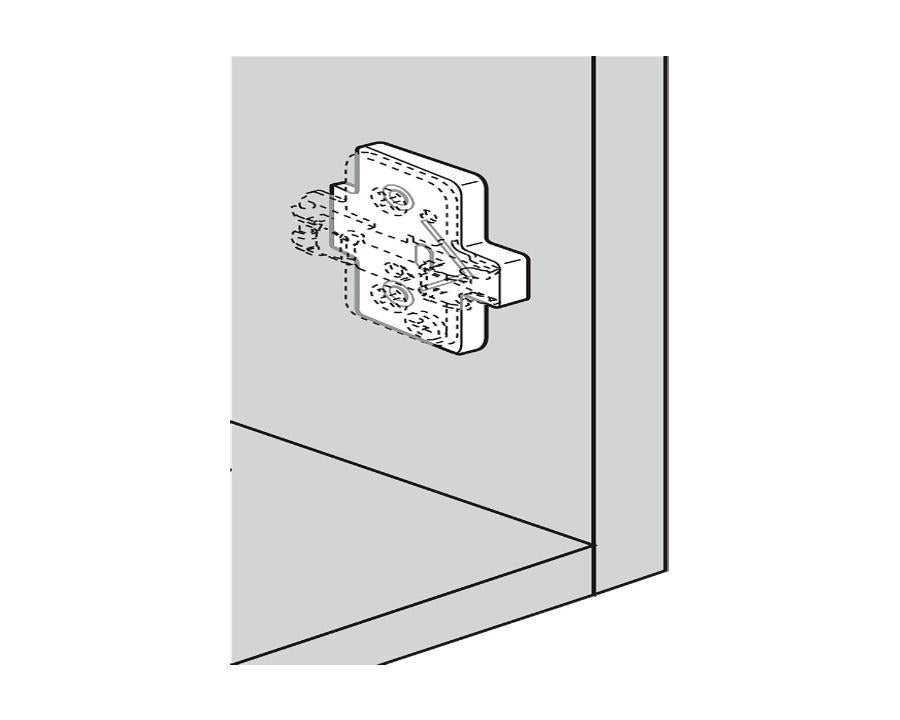

Cabinetry installations where the cabinet body or face frame sits at a -5° angle relative to the door plane. Resolves door-gap inconsistencies on angled end panels and non-square wall conditions without shimming or custom boring. Compatible with Blum CLIP and CLIP top hinge families using screw-on mounting.
