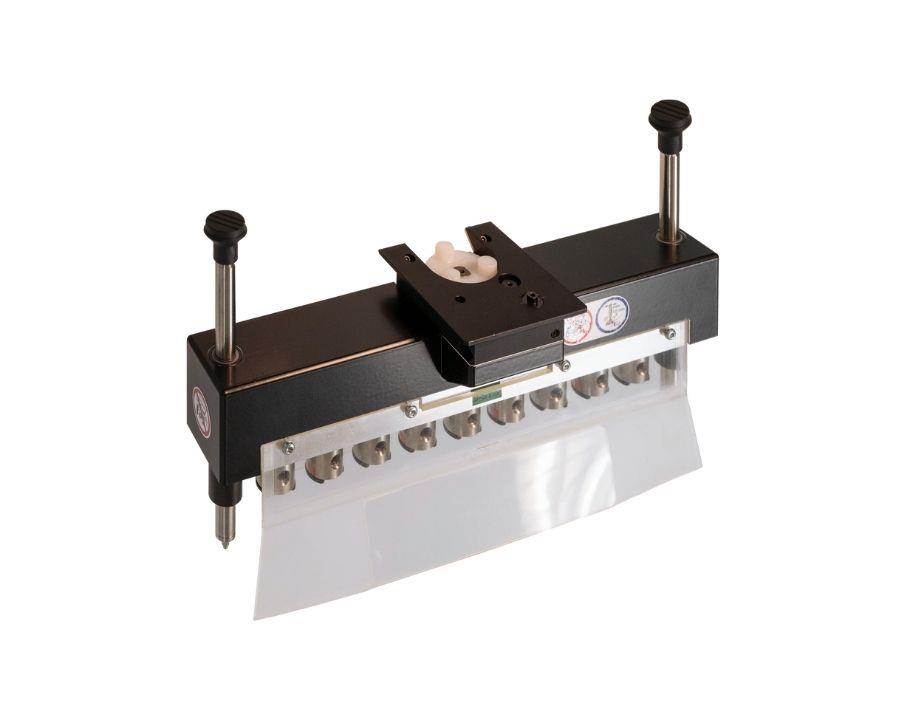

9 Spindle Drilling Head by Blum | MINIPRESS Pro & Top

A precision 9-spindle drilling head engineered for consistent, repeatable fitting insertion on Blum MINIPRESS Pro and MINIPRESS Top machines.

Constructed for industrial-grade accuracy, this drilling head supports both vertical and optional horizontal insertion of Blum fittings. The screw-chuck assembly with button engagement ensures secure, tool-free drill bit changes via Blum's new clamping technology. With 5 right-rotating and 4 left-rotating spindles, it handles system drilling across cabinet carcasses and fronts with minimal setup time. Suited to high-volume cabinet manufacturing environments where repeatability and throughput are non-negotiable.

Product Details

• Material: Industrial-grade steel drilling head assembly
• Spindle count: 9 (5 right-rotating, 4 left-rotating)
• Assembly type: Screw assembly with button chuck
• Overall drill bit length: 57 mm
• Net weight: 4.4 kg
• Compatible with: Blum MINIPRESS Pro and MINIPRESS Top (Series AN)
• Processing: System drilling — vertical standard, horizontal optional

Best For

Cabinet manufacturers running Blum MINIPRESS Pro or MINIPRESS Top machines who need a dedicated 9-spindle head for system drilling operations. Ideal for production lines where drill head changeovers must be fast and positional accuracy cannot be compromised. Works with or without EASYSTICK automatic stop integration.
