8 Spindle Drilling Head for MINIPRESS Pro and MINIPRESS Top by Blum

A precision 8-spindle drilling head engineered for fast, repeatable boring on Blum Minipress Pro and Minipress Top machines.

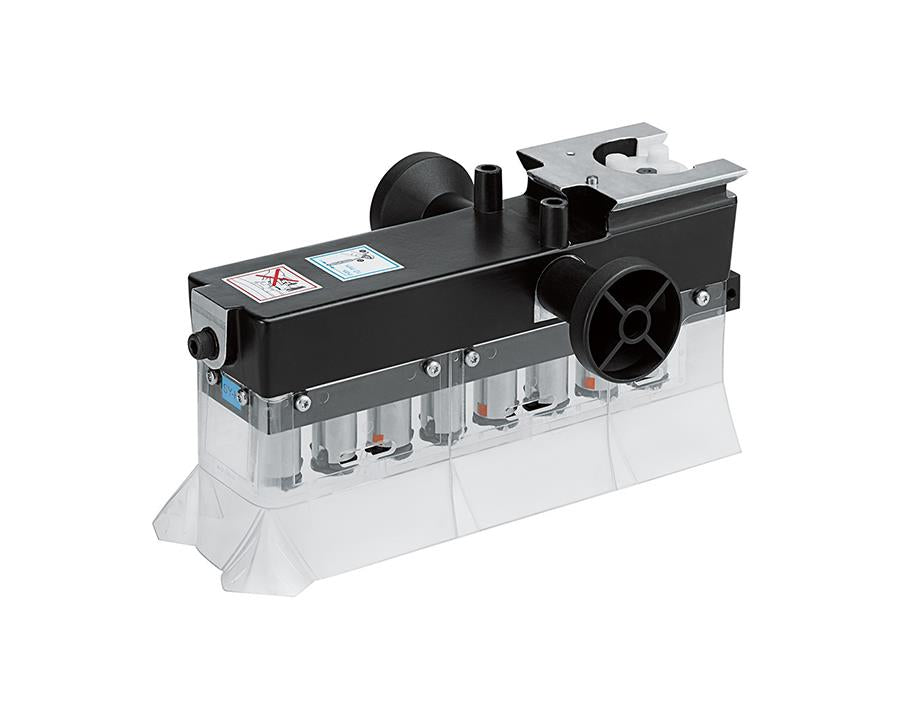

The MZK.220S.01 is an 8-spindle drilling head designed for use with the Blum Minipress Pro and Minipress Top bench-mounted boring machines. With four right-hand and four left-hand rotating spindles, it handles front fixing brackets, cabinet profiles, BLUMOTION housings, and front fixings in a single pass. The quick-connect chuck system allows tool-free head changes, keeping changeover time minimal on production runs.

Product Details

• 8-spindle configuration: 4 right-hand, 4 left-hand rotation
• Drilling head assembly: quick-connect chuck
• Compatible with Blum Minipress Pro and Minipress Top (Series CP)
• Processes: front fixing brackets, cabinet profiles, BLUMOTION housings, front fixings
• Overall drill bit length: 57 mm
• Net weight: 4.6 kg

Best For

Cabinet workshops and joinery operations running Blum Minipress Pro or Minipress Top machines that require high-volume, multi-hole boring in a single setup. Eliminates sequential single-spindle passes on front fixings and cabinet profiles, reducing cycle time and improving positional consistency across batch production.
